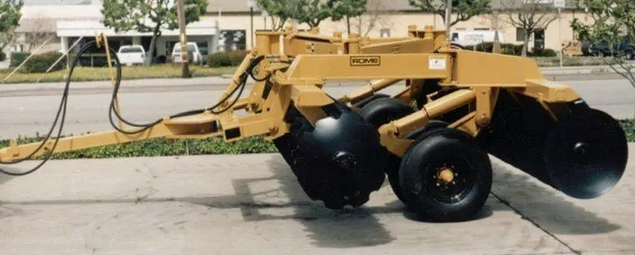

Series ACH Hinge Wheel Offset Disk Harrow - for use with tractors in the 212 – 390 hp range.


  • The patented Hinge Wheel Offset Disk Harrow line was designed by ROME engineers to meet today’s high residue needs. Ruggedly built, it is ideally suited for plowing, light plowing, pulverizing, and plowing stubble.

  • The unique concept combines the superior uniform leveling and mixing capability of a hinge harrow with the convenient transportability of a wheel harrow.

  • Gang assembly design positions the bearing and spacer assemblies behind the gang carriers, providing additional clearance and resulting in excellent trash handling capabilities.

  • A full range of adjustments allows the precise control of penetration depth hydraulically.

  • “On the go” angle adjustments from 0° to 45° are hydraulically controlled from the operator’s seat.

  • Equipped with Timken dual tapered roller bearings with cast housings.

  • Standard heavy-duty bearing wear plates help protect the bearing housing from wear caused by abrasive soils, extending its service life and reducing cost.

  • Wide 17-3/4” (451mm) disk spacing encourages less clogging, provides superior soil and residue control, reduces drawbar pull, and maximizes penetration.


*Engine horsepower is suggested ranges and varies according to soil conditions and weight added to the scraper.
NOTE: This scraper requires hydraulic control. One rear tractor hydraulic circuit required for scraper operation. Additional hydraulic circuits required for tilt option and each attachment.

Standart Equipment

Optional Equipment

  • 32” (813mm) diameter x 3/8” (10mm) thick, cutout (notched) shallow concavity disk blades.

  • Adjustable disk blade scrapers.

  • Extra heavy-duty bearing wear plates with hard plate overlay.

  • New industrial tires -12.5L x 16 – 12 ply.

  • Drawbar jack stand and safety chain.

  • Hydraulic control group includes cylinders, hose holders, and hoses with fittings to reach the rear of the tractor.

  • Rear hitch assembly.

  • Rear hydraulic group.

  • Light group.

  • 32” (813mm) diameter x 3/8” (10mm) thick; cutout (notched) shallow concavity dura-faced disk blades (Model B1).

  • 34” (864mm) diameter x 3/8” (10mm) thick; cutout (notched) shallow concavity dura-faced disk blades. (Model B2).
